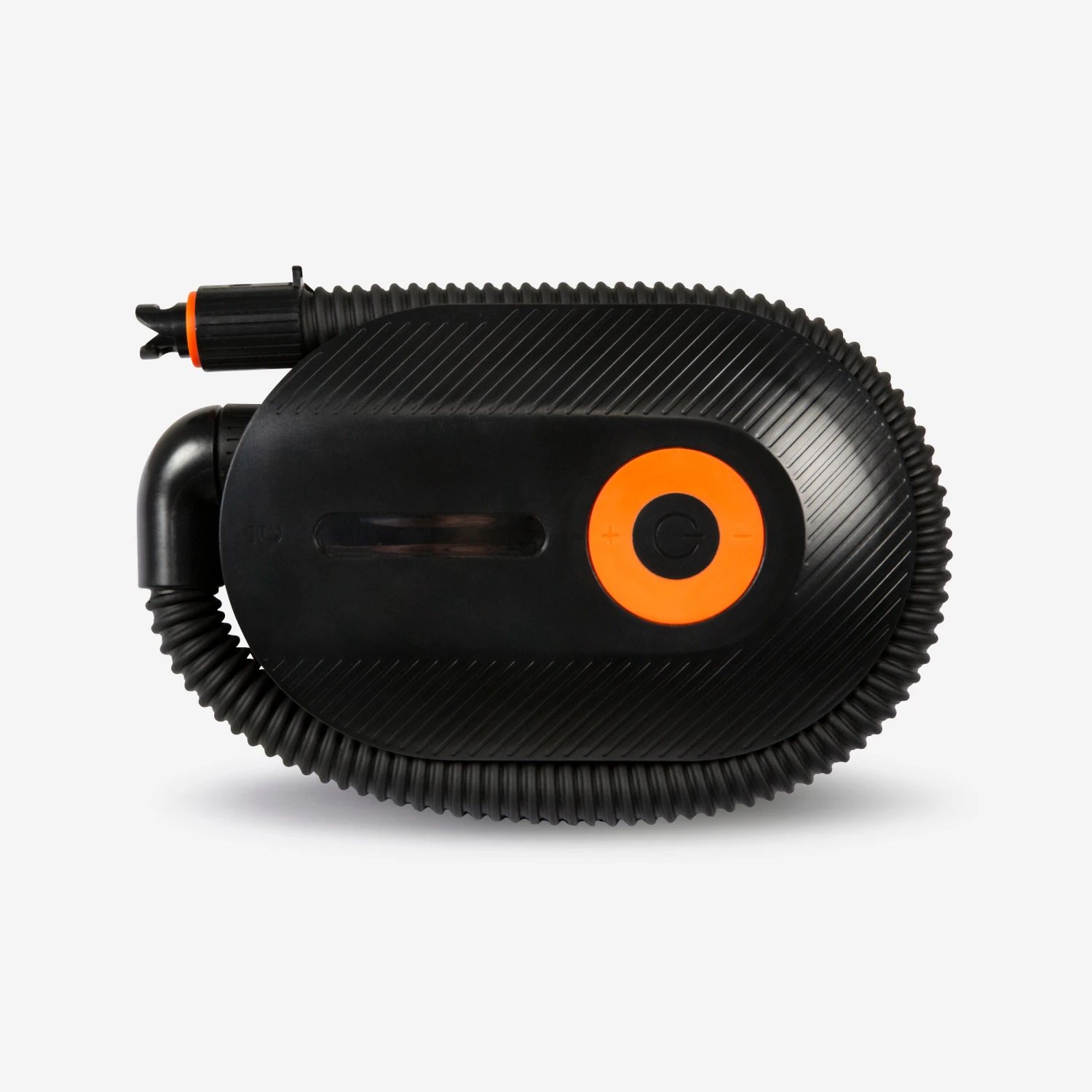

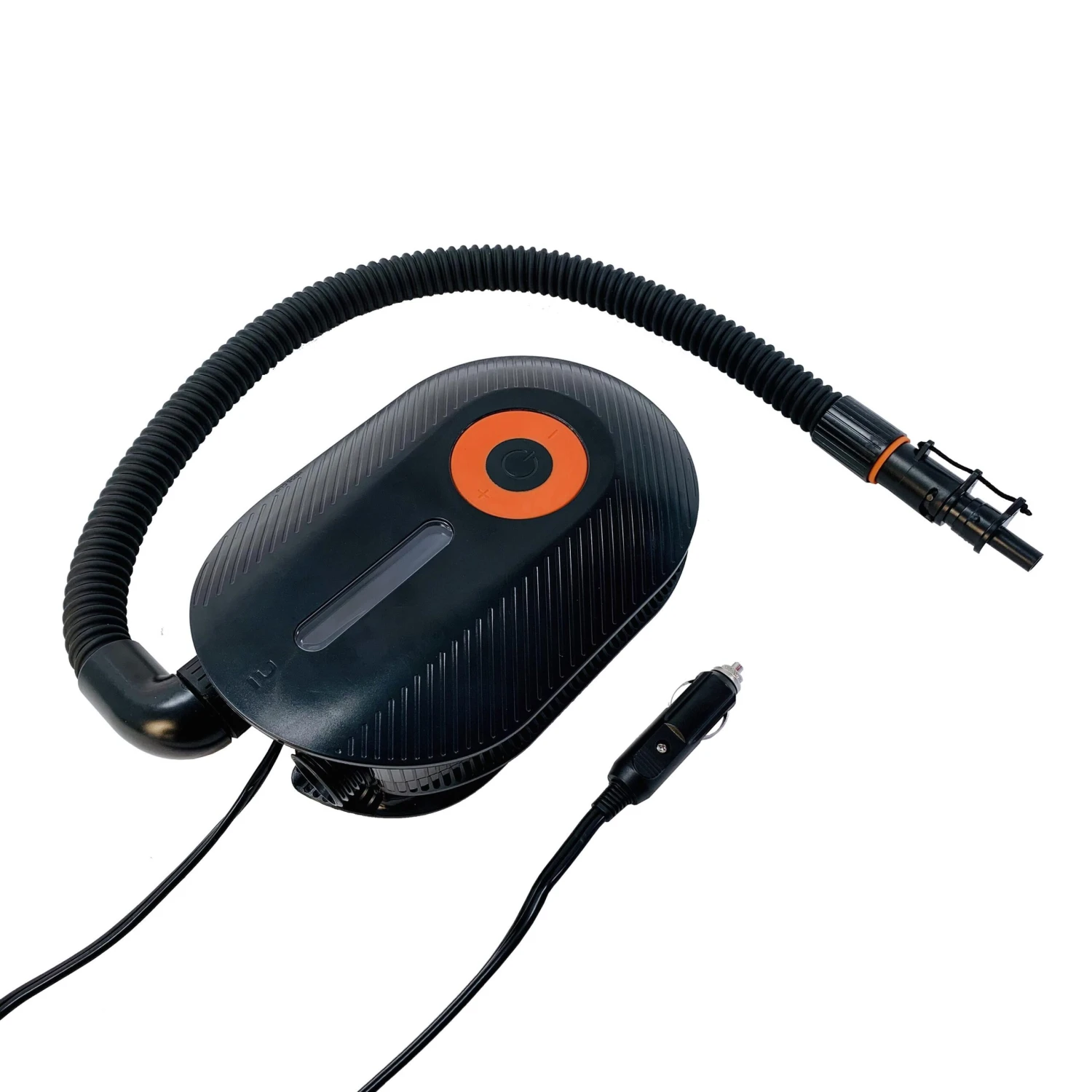

ELECTRIC PUMP 0-20 PSI 13.8V

Our team of enthusiasts developed this electric pump to inflate up to 20 PSI using your cigarette lighter.This electric pump connects to the 12 V socket on your vehicle with its ENGINE RUNNING (13.8 V-10A). Inflate your stand up paddle, kayak, boat, tent, etc. up to 20 PSI (1.37 Bar).

CONNECTION

Operates connected to a 12 V vehicle cigarette lighter of your vehicle with its engine running (13.8 volt)
Compatible with minimum 10 amp fuses.
Provides pressure up to 20 PSI (1.37 bar).

INFLATION

1/ Connect the pump to the cigarette lighter, car engine on.
2/ Connect the pump hose to the vessel
3/ Select the pressure unit: PSI/Bar,
4/ Adjust the recommended pressure using the +/- buttons,
5/ Start to inflate by pressing POWER,
The pump will stop automatically when it reaches the target pressure.

Adjust the target pressure by 0.1 PSI (0.01 Bar) up to 20 PSI (1.37 BAR)
A volume cycle up to 0.4 PSI then a pressure cycle up to 20 PSI.

DEFLATION

1/ Connect the pump to the cigarette lighter.
2/ Connect your hose to the “DEFLATE” outlet of the pump and connect it to the valve of your vessel.
3/ Select the pressure unit: psi/bar
4/ Press the (-) button until “DEFLATE” is displayed on the screen.
5/ Start deflation by pressing POWER
6/ To stop it, press POWER or wait for the end of the 120 second cycle.

DIMENSIONS

Length: 28.5 cm
Width: 19 cm
Height: 9 cm
Weight: 1.6 kg

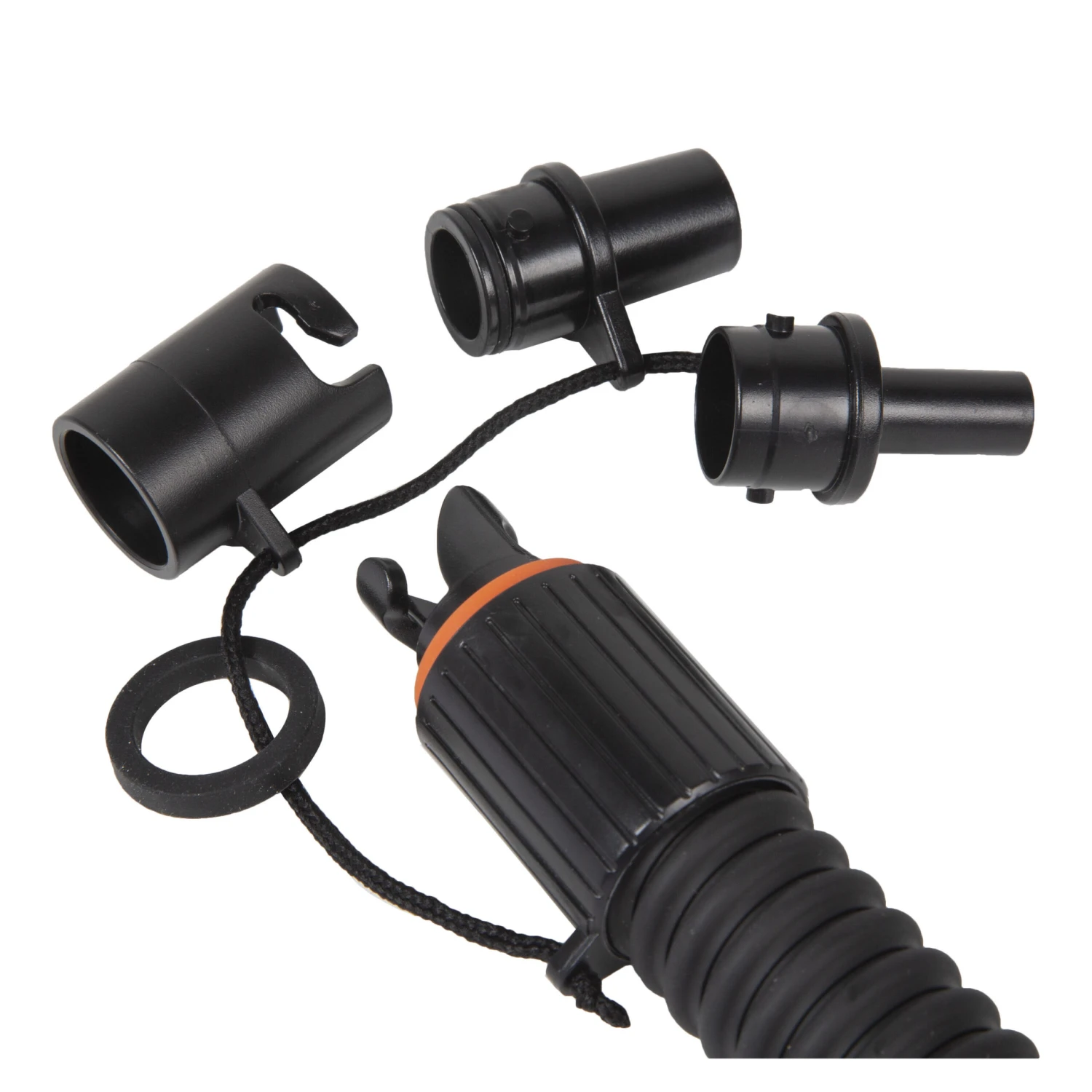

Supplied with a set of multi-tips

In addition to its basic nozzle for inflating at high pressure SUP and KAYAK in drop stitch, the pump is supplied with:
A “mini boston” nozzle to inflate kayak seats
A “boston” nozzle for inflating low pressure kayaks, inflatable mattresses and tents.
An adapter and nozzle to inflate certain kitesurf wings.
